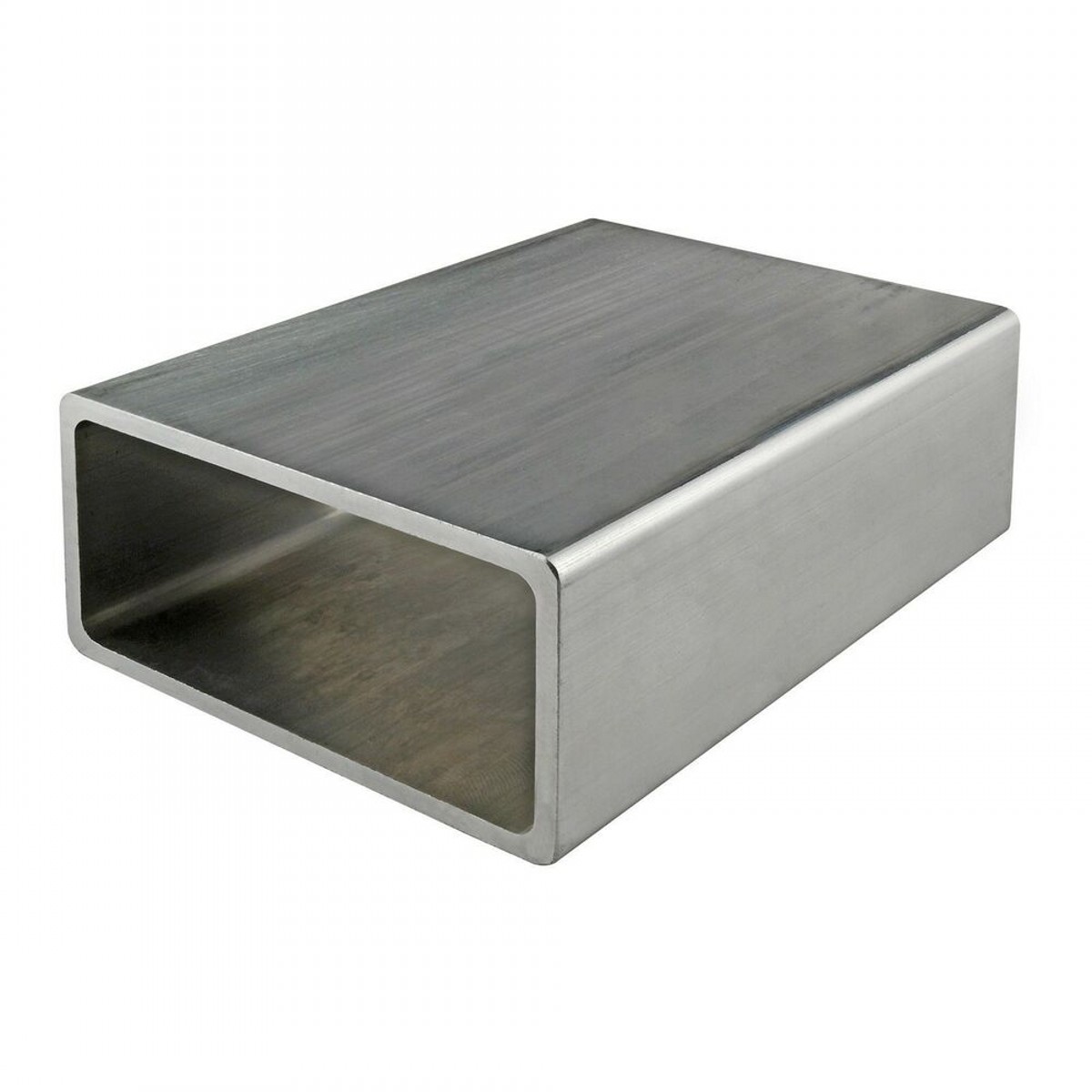

Rectangular Tube

Holic® offers rectangular tube and pipe in a large selection of sizes and wall thickness options.

Item Name: Rectangular Tube.

Brand: HOLIC®.

Product Description

Rectangular Tube

Holic® offers rectangular tube and pipe in a large selection of sizes and wall thickness options.

Item Name: Rectangular Tube.

Brand: HOLIC®.

Standard:

  • ASTM A500 Grade B,
  • ASTM A513 (1020-1026)
  • ASTM A36 (A36)
  • EN 10210:S235,S355,S235JRH,
  • S355J2H,S355NH
  • EN 10219:S235,S355,S235JRH,
  • S275J0H, S275J2H, S355J0H, S355J2H

Surface conditions:

  • Hot rolled
  • Cold rolled



Ms Rectangular tube sizes（It can be customized according to customer requirements）

Size by Inch  (diameter) Thickness Sizes by MM  (diameter) Thickness
inch inch mm mm
1“ x 1/2″ 0.065″ 10mm×15mm 0.6mm～1.5mm
1“ x 3/4″ 0.065″ 10mm×20mm 0.6mm～1.5mm
0.095″ 14mm×21mm 0.6mm～1.5mm
1 1/4″ x 3/4″ 0.065″ 15mm×30mm 0.6mm～1.5mm
1 1/2″ x 3/4″ 0.065″ 15mm×38mm 0.6mm～1.5mm
0.120″ 20mm×20mm 0.6mm～2mm
1 1/2″ x 1″ 0.065″ 20mm×30mm 0.6mm～2mm
0.072″ 20mm×40mm 0.6mm～2mm
0.083″ 20mm×50mm 0.6mm～2mm
0.120″ 22mm×35mm 0.6mm～2mm
2“ x 1” 0.065″ 25mm×40mm 0.9mm～2mm
0.083″ 25mm×65mm 0.9mm～3.75mm
0.120″ 30mm×20mm 1mm～2mm
0.188″ 30mm×40mm 1mm～3.75mm
2” x 1 1/4“ 0.065″ 30mm×45mm 1mm～3.75mm
0.083″ 30mm×50mm 1mm～3.75mm
2“ x 1 1/2” 0.083″ 30mm×60mm 1mm～4mm
0.120″ 40mm×25mm 1mm～4.5mm
2 1/2“ x 1 1/2” 0.072″ 40mm×50mm 1mm～4.5mm
0.083″ 40mm×60mm 1mm～4.5mm
0.120″ 40mm×80mm 1mm～5mm
0.148″ 40mm×100mm 1mm～5mm
0.188″ 50mm×25mm 2mm～5mm
0.250″ 50mm×30mm 2mm～5mm
3″ x 1″ 0.083″ 50mm×60mm 2mm～5mm
0.120″ 50mm×80mm 2mm～5mm
0.188″ 50mm×100mm 2mm～5mm
3“ x 1 1/2” 0.083″ 60mm×30mm 2mm～6mm
0.120″ 60mm×40mm 2mm～6mm
0.188″ 60mm×80mm 2mm～6mm
0.250″ 70mm×50mm 2mm～6mm
3“ x 2” 0.065 80mm×30mm 2mm～8mm
0.083 80mm×40mm 2mm～8mm
0.125 80mm×60mm 2mm～8mm
0.188 80mm×100mm 2mm～8mm
0.250 100mm×50mm 2mm～8mm
3“ x 2” 0.083″ 120mm×60mm 2.5mm～10mm
0.120″ 120mm×80mm 2.5mm～10mm
0.188″ 140mm×60mm 2.5mm～10mm
0.250″ 140mm×80mm 2.5mm～10mm
0.312″ 150mm×100mm 2.5mm～12mm
4“ x 1 1/2” 0.120″ 160mm×80mm 2.5mm～12mm
0.188″ 180mm×150mm 2.5mm～12mm
4“ x 2” 0.083″ 200mm×100mm 4mm～12mm
0.120″ 200mm×150mm 4mm～12mm
0.188″ 220mm×140mm 4mm～12mm
0.250″ 250mm×150mm 6mm～12mm
0.312″ 250mm×100mm 6mm～12mm
0.375″ 250mm×200mm 6mm～30mm
4“ x 2 1/2” 0.188″ 300mm×100mm 6mm～30mm
0.250″ 300mm×150mm 6mm～30mm
4″ x 3″ 0.083″ 300mm×200mm 6mm～30mm
0.120″ 300mm×250mm 6mm～30mm
0.188″ 400mm×250mm 8mm～30mm
0.250″ 400mm×300mm 8mm～30mm
0.312″ 450mm×200mm 8mm～30mm
0.375″ 450mm×250mm 8mm～30mm
4 1/2“ x 2 1/2” 0.188″ 400mm×300mm 8mm～30mm
0.250″ 400mm×350mm 8mm～30mm
5″ x 2” 0.120“ 500mm×200mm 10mm～30mm
0.188″ 500mm×250mm 10mm～30mm
0.250″ 500mm×300mm 10mm～30mm
0.312″ 500mm×350mm 10mm～30mm
0.375″ 500mm×400mm 10mm～30mm
5″ x 2 1/2” 0.120″ 500mm×450mm 10mm～30mm
0.188″ 600mm×200mm 10mm～28mm
0.250″ 600mm×400mm 10mm～28mm
5″ x 3″ 0.188″ 600mm×500mm 10mm～28mm
0.250″ 800mm×400mm 10mm～28mm
0.312″ 800mm×600mm 10mm～28mm
0.375″ 800mm×700mm 10mm～28mm
0.500″ 1000mm×400mm 10mm～28mm
5″ x 4″ 0.188″ 1000mm×500mm 10mm～28mm
0.250″ 1000mm×600mm 10mm～28mm
0.312″ 1000mm×800mm 10mm～28mm
0.375″
6″ x 2″ 0.120″
0.188″
0.250″
0.312″
0.375″
6“ x 3″ 0.120″
0.188″
0.250″
0.312″
0.375″
0.500″
6“ x 4“ 0.120″
0.188″
0.250″
0.312″
0.375″
0.500″
7“ x 3“ 0.188″
0.250″
0.312″
0.375″
7“ x 4” 0.188″
0.250″
0.312″
0.375″
0.500″
7“ x 5” 0.188″
0.250″
0.312″
0.375″
0.500″
8“ x 2” 0.188″
0.250″
0.312″
0.375″
8“ x 3” 0.188″
0.250″
0.312″
0.375″
0.500″
8“ x 4” 0.188″
0.250″
0.312″
0.375″
0.500″
8″ x 6” 0.188″
0.250″
0.312″
0.375″
0.500″
0.625″
9“ x 3” 0.188″
0.250″
0.312″
0.375″
9“ x 7” 0.188″
0.250″
0.312″
0.375″
0.500″
0.625″
10“ x 2” 0.188″
0.250″
0.312″
0.375″
10″ x 3” 0.188″
0.250″
0.312″
0.375″
10″ x 4″ 0.188″
0.250″
0.312″
0.375″
0.500″
10″ x 5″ 0.188″
0.250″
0.312″
0.375″
0.500″
10″ x 6″ 0.188″
0.250″
0.312″
0.375″
0.500″
0.625″
10” x 8“ 0.188″
0.250″
0.375″
0.500″
0.625″
12″ x 2″ 0.188″
0.250″
0.312“
0.375″
12″ x 3″ 0.188″
0.250″
0.312″
0.375″
12″ x 4″ 0.188″
0.250″
0.312″
0.375″
0.500″
0.625″
12” x 6“ 0.188″
0.250″
0.312″
0.375″
0.500″
0.625″
12″ x 8″ 0.250″
0.312″
0.375″
0.500″
0.625″
12″ x 10″ 0.250″
14″ x 4″ 0.250″
0.312″
0.375″
0.500“
14″ x 6″ 0.250″
0.312″
0.375″
0.500“
14″ x 10″ 0.250″
0.312″
0.375″
0.500″
0.625″
16″x 4″ 0.312″
0.375″
0.500″
16″ x 8″ 0.250″
0.312″
0.375″
0.500″
16″ x 12″ 0.312″
0.375″
0.500″
0.625″
18″ x 6″ 0.312″
0.375″
0.500″
20″ x 4″ 0.312″
0.375″
0.500″
20″ x 8″ 0.312″
0.375″
0.500″
20″ x 12″ 0.312″
0.375″
0.500″
0.625″





Chemical composition of material

Grade element C Mn P S
ASTM A500 Gr.b % 0.05%-0.23% 0.3%-0.6% 0.04% 0.04%



Acc.to EN10027/1 Acc.to EN10027/2 C% max (Norminal W.T.(mm) Si% max Mn% max P% max S% max N% max
and IC 10 ≤ 40
S235JRH 1.0039 0.17 0.20 – 1.40 0.045 0.045 0.009
S275JOH 1.0149 0.20 0.22 – 1.50 0.040 0.040 0.009
S275J2H 1.0138 0.20 0.22 – 1.50 0.035 0.035 –
S355JOH 1.0547 0.22 0.22 0.55 1.60 0.040 0.040 0.009
S355J2H 1.0576 0.22 0.22 0.55 1.60 0.035 0.035 –



Mechanical properties of material

Grade Yield Strength Tensile Strength Elongation
A500.Gr.b 46 ksi 58 ksi 23%
A513.GR.B 72 ksi 87 ksi 10%





Norm Yield Strength Tensile Strength Min.elogation Min.percent properties
Acc.to EN10027/1

and IC 10



 Acc.to EN10027/2 Norminal W.T.mm Norminal W.T.mm Longit. Cross Test temperature°C Average min.impact value
≤16 >6 >40 <3 ≤3≤65 Norminal W.T.mm
≤65 ≤65 ≤40 >40 >40 ≤65
≤65 ≤40
S253JRH 1.0039 235 225 215 360-510 340-470 26 25 24 23 20 27
S275JOH 1.0149 275 265 255 410-580 410-560 22 21 20 19 0 27
S275J2H 1.0138 275 265 255 430-560 410-560 22 21 20 19 -20 27
S355JOH 1.0547 355 345 335 510-680 490-630 22 21 20 19 0 27
S355J2H 1.0576 355 345 335 510-680 490-630 22 21 20 19 -20 27





Equivalent specfications



EN 10210-1



NF A 49501 NF A 35501



DIN 17100 DIN 17123/4/5



BS 4360



UNI 7806
S235JRH E 24-2 St 37.2 – Fe 360 B
S275JOH E 28-3 St 44.3 U 43 C Fe 430 C
S275J2H E 28-4 St 44.3 N 43 D Fe 430 D
S355JOH E 36-3 St 52.3 U 50 C Fe 510 C
S355J2H E 36-4 St 52.3 N 50 D Fe 510 D
S275NH – St E 285 N – –
S275NLH – TSt E 285 N 43 EE –
S355NH E 355 R St E 355 N – –
S355NLH – TSt E 355 N 50 EE –
S460NH E 460 R St E 460 N – –
S460NLH – TSt E 460 N 55 EE –

– block letter “S” means “STEEL FOR STRUCTURAL APPLICATIONS”

– the next fi gure means the minim. yield value required for wall thickness ≤16 mm

– “J2” means impact test value -20° C min. 27 joule

– block letter “H” means “HOLLOW SECTION”.
