Carbon Steel Slip-on Flange

Holic® offers Carbon Steel Slip-on Flange of various standards and sizes.

Item Name: Carbon Steel Slip-on Flange/CS Slip-on Flange.

Brand: HOLIC®.

Product Description

Carbon Steel Slip-on Flange

Holic® offers Carbon Steel Slip-on Flange of various standards and sizes.

Item Name: Carbon Steel Slip-on Flange/CS Slip-on Flange.

Brand: HOLIC®.


CLASS 300 According to ASTM A/SA-105; ANSI B16.5
Nominal Pipe Size Outside Diam. of Flange (O) Thick. of Flange (C) Diam. of Raised Face (R) Diam. of Hub at Base (X) Length thru Hub (Y) Diam. of Bore (B) No. of Holes Diam. of Holes Diam. of Bolts Diam. of Bolt Circle Approx. Weight (in Pounds)
1/2 3.5 0.44 1.38 1.19 0.62 0.88 4 0.62 0.5 2.38 1
3/4 3.88 0.5 1.69 1.5 0.62 1.09 4 0.62 0.5 2.75 2
1 4.25 0.56 2 1.94 0.69 1.36 4 0.62 0.5 3.12 2
1 1/4 4.62 0.62 2.5 2.31 0.81 1.7 4 0.62 0.5 3.5 3
1 1/2 5 0.69 2.88 2.56 0.88 1.95 4 0.62 0.5 3.88 3
2 6 0.75 3.62 3.06 1 2.44 4 0.75 0.62 4.75 5
2 1/2 7 0.88 4.12 3.56 1.12 2.94 4 0.75 0.62 5.5 7
3 7.5 0.94 5 4.25 1.19 3.57 4 0.75 0.62 6 8
3 1/2 8.5 0.94 5.5 4.81 1.25 4.07 8 0.75 0.62 7 11
4 9 0.94 6.19 5.31 1.31 4.57 8 0.75 0.62 7.5 13
5 10 0.94 7.31 6.44 1.44 5.66 8 0.88 0.75 8.5 15
6 11 1 8.5 7.56 1.56 6.72 8 0.88 0.75 9.5 19
8 13.5 1.12 10.62 9.69 1.75 8.72 8 0.88 0.75 11.75 30
10 16 1.19 12.75 12 1.94 10.88 12 1 0.88 14.25 43
12 19 1.25 15 14.38 2.19 12.88 12 1 0.88 17 64
14 21 1.38 16.25 15.75 2.25 14.14 12 1.12 1 18.75 90
16 23.5 1.44 18.5 18 2.5 16.16 16 1.12 1 21.25 98
18 25 1.56 21 19.88 2.69 18.18 16 1.25 1.12 22.75 130
20 27.5 1.69 23 22 2.88 20.2 20 1.25 1.12 25 165
24 32 1.88 27.25 26.12 3.25 24.25 20 1.38 1.25 29.5 220
CLASS 300 According to ASTM A/SA-105; ANSI B16.5
Nominal Pipe Size Outside Diam. of Flange (O) Thick. of Flange (C) Diam. of Raised Face (R) Diam. of Hub at Base (X) Length thru Hub (Y) Diam. of Bore (B) No. of Holes Diam. of Holes Diam. of Bolts Diam. of Bolt Circle Approx. Weight (in Pounds)
1/2 3.75 0.56 1.38 1.5 0.88 0.88 4 0.62 0.5 2.62 2
3/4 4.62 0.62 1.69 1.88 1 1.09 4 0.75 0.62 3.25 3
1 4.88 0.69 2 2.12 1.06 1.36 4 0.75 0.62 3.5 3
1 1/4 5.25 0.75 2.5 2.5 1.06 1.7 4 0.75 0.62 3.88 4
1 1/2 6.12 0.81 2.88 2.75 1.19 1.95 4 0.88 0.75 4.5 6
2 6.5 0.88 3.62 3.31 1.31 2.44 8 0.75 0.62 5 7
2 1/2 7.5 1 4.12 3.94 1.5 2.94 8 0.88 0.75 5.88 10
3 8.25 1.12 5 4.62 1.69 3.57 8 0.88 0.75 6.62 13
3 1/2 9 1.19 5.5 5.25 1.75 4.07 8 0.88 0.75 7.25 17
4 10 1.25 6.19 5.75 1.88 4.57 8 0.88 0.75 7.88 22
5 11 1.38 7.31 7 2 5.66 8 0.88 0.75 9.25 28
6 12.5 1.44 8.5 8.12 2.06 6.72 12 0.88 0.75 10.62 39
8 15 1.62 10.62 10.25 2.44 8.72 12 1 0.88 13 58
10 17.5 1.88 12.75 12.62 2.62 10.88 16 1.12 1 15.25 81
12 20.5 2 15 14.75 2.88 12.88 16 1.25 1.12 17.75 115
14 23 2.12 16.25 16.75 3 14.14 20 1.25 1.12 20.25 165
16 25.5 2.25 18.5 19 3.25 16.16 20 1.38 1.25 22.5 190
18 28 2.38 21 21 3.5 18.18 24 1.38 1.25 24.75 250
20 30.5 2.5 23 23.12 3.75 20.2 24 1.38 1.25 27 315
24 36 2.75 27.25 27.62 4.19 24.25 24 1.62 1.5 32 475
CLASS 600 According to ASTM A/SA-105; ANSI B16.5
Nominal Pipe Size Outside Diam. of Flange (O) Thick. of Flange (C) Diam. of Raised Face (R) Diam. of Hub at Base (X) Length thru Hub (Y) Diam. of Bore (B) No. of Holes Diam. of Holes Diam. of Bolts Diam. of Bolt Circle Approx. Weight (in Pounds)
1/2 3.75 0.56 1.38 1.5 0.88 0.88 4 0.62 0.5 2.62 2
3/4 4.62 0.62 1.69 1.88 1 1.09 4 0.75 0.62 3.25 3
1 4.88 0.69 2 2.12 1.06 1.36 4 0.75 0.62 3.5 4
1 1/4 5.25 0.81 2.5 2.5 1.12 1.7 4 0.75 0.62 3.88 5
1 1/2 6.12 0.88 2.88 2.75 1.25 1.95 4 0.88 0.75 4.5 7
2 6.5 1 3.62 3.31 1.44 2.44 8 0.75 0.62 5 9
2 1/2 7.5 1.12 4.12 3.94 1.62 2.94 8 0.88 0.75 5.88 13
3 8.25 1.25 5 4.62 1.81 3.57 8 0.88 0.75 6.62 16
3 1/2 9 1.38 5.5 5.25 1.94 4.07 8 1 0.88 7.25 21
4 10.75 1.5 6.19 6 2.12 4.57 8 1 0.88 8.5 37
5 13 1.75 7.31 7.44 2.38 5.66 8 1.12 1 10.5 63
6 14 1.88 8.5 8.75 2.62 6.72 12 1.12 1 11.5 80
8 16.5 2.19 10.62 10.75 3 8.72 12 1.25 1.12 13.75 115
10 20 2.5 12.75 13.5 3.38 10.88 16 1.38 1.25 17 170
12 22 2.62 15 15.75 3.62 12.88 20 1.38 1.25 19.25 200
14 23.75 2.75 16.25 17 3.69 14.14 20 1.5 1.38 20.75 230
16 27 3 18.5 19.5 4.19 16.16 20 1.62 1.5 23.75 330
18 29.25 3.25 21 21.5 4.62 18.18 20 1.75 1.62 25.75 400
20 32 3.5 23 24 5 20.2 24 1.75 1.62 28.5 510
24 37 4 27.25 28.25 5.5 24.25 24 2 1.88 33 730
CLASS 900 According to ASTM A/SA-105; ANSI B16.5
Nominal Pipe Size Outside Diam. of Flange (O) Thick. of Flange (C) Diam. of Raised Face (R) Diam. of Hub at Base (X) Length thru Hub (Y) Diam. of Bore (B) No. of Holes Diam. of Holes Diam. of Bolts Diam. of Bolt Circle Approx. Weight (in Pounds)
1/2 4.75 0.88 1.38 1.5 1.25 0.88 4 0.88 0.75 3.25 4
3/4 5.12 1 1.69 1.75 1.38 1.09 4 0.88 0.75 3.5 5
1 5.88 1.12 2 2.06 1.62 1.36 4 1 0.88 4 8
1 1/4 6.25 1.12 2.5 2.5 1.62 1.7 4 1 0.88 4.38 9
1 1/2 7 1.25 2.88 2.75 1.75 1.95 4 1.12 1 4.88 12
2 8.5 1.5 3.62 4.12 2.25 2.44 8 1 0.88 6.5 25
2 1/2 9.62 1.62 4.12 4.88 2.5 2.94 8 1.12 1 7.5 36
3 9.5 1.5 5 5 2.12 3.57 8 1 0.88 7.5 26
4 11.5 1.75 6.19 8 1.25 1.12 6.25 2.75 4.57 8 1.25 1.12 9.25 53
5 13.75 2 7.31 8 1.38 1.25 7.5 3.12 5.66 8 1.38 1.25 11 83
6 15 2.19 8.50 12 1.25 1.12 9.25 3.38 6.72 12 1.25 1.12 12.5 110
8 18.5 2.5 10.62 12 1.50 1.38 11.75 4 8.72 12 1.5 1.38 15.5 170
10 21.5 2.75 12.75 16 1.50 1.38 14.5 4.25 10.88 16 1.5 1.38 18.5 245
12 24 3.12 15.00 20 1.50 1.38 16.5 4.62 12.88 20 1.5 1.38 21 325
14 25.25 3.38 16.25 20 1.62 1.50 17.75 5.12 14.14 20 1.62 1.5 22 400
16 27.75 3.5 18.50 20 1.75 1.62 20 5.25 16.16 20 1.75 1.62 24.25 425
18 31 4 21.00 20 2.00 1.88 22.25 6 18.18 20 2 1.88 27 600
20 33.75 4.25 23.00 20 2.12 2.00 24.5 6.25 20.2 20 2.12 2 29.5 730
24 41 5.5 27.25 29.5 8 24.25 20 2.62 2.5 35.5 1400
CLASS 1500 According to ASTM A/SA-105; ANSI B16.5
Nominal Pipe Size Outside Diam. of Flange (O) Thick. of Flange (C) Diam. of Raised Face (R) Diam. of Hub at Base (X) Length thru Hub (Y) Diam. of Bore (B) No. of Holes Diam. of Holes Diam. of Bolts Diam. of Bolt Circle Approx. Weight (in Pounds)
1/2 4.75 0.88 1.38 1.5 1.25 0.88 4 0.88 0.75 3.25 4
3/4 5.12 1 1.69 1.75 1.38 1.09 4 0.88 0.75 3.5 5
1 5.88 1.12 2 2.06 1.62 1.36 4 1 0.88 4 8
1 1/4 6.25 1.12 2.5 2.5 1.62 1.7 4 1 0.88 4.38 9
1 1/2 7 1.25 2.88 2.75 1.75 1.95 4 1.12 1 4.88 12
2 8.5 1.5 3.62 4.12 2.25 2.44 8 1 0.88 6.5 25
2 1/2 9.62 1.62 4.12 4.88 2.5 2.94 8 1.12 1 7.5 36
3 10.5 1.88 5 5.25 2.88 8 1.25 1.12 8 48
4 12.25 2.12 6.19 6.38 3.56 8 1.38 1.25 9.5 73
5 14.75 2.88 7.31 7.75 4.12 8 1.62 1.5 11.5 130
6 15.5 3.25 8.5 9 4.69 12 1.5 1.38 12.5 165
8 19 3.62 10.62 11.5 5.62 12 1.75 1.62 15.5 260
10 23 4.25 12.75 14.5 6.25 12 2 1.88 19 435
12 26.5 4.88 15 17.75 7.12 16 2.12 2 22.5 580
14 29.5 5.25 16.25 19.5 16 2.38 2.25 25
16 32.5 5.75 18.5 21.75 16 2.62 2.5 27.75
18 36 6.38 21 23.5 16 2.88 2.75 30.5
20 38.75 7 23 25.25 16 3.12 3 32.75
24 46 8 27.25 30 16 3.62 3.5 39

See also different:

Tee

Tee

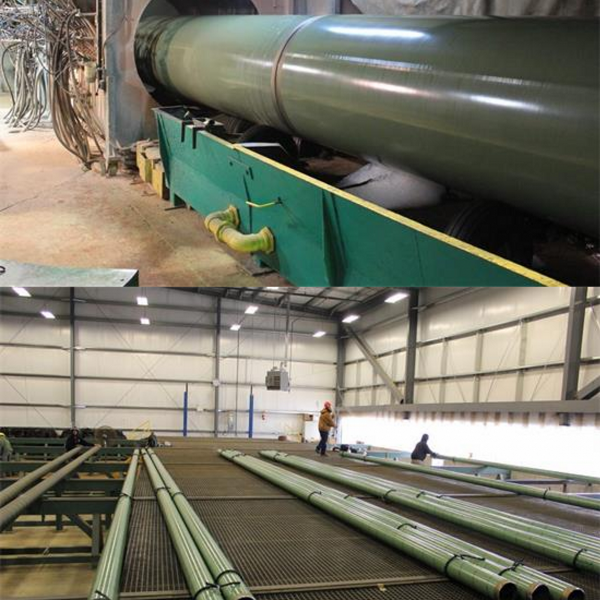

FBE Coating Pipe
