OCTG Pipe/Oil Casing Pipe
Holic® offers a complete range of API 5CT casing pipe for all types of oil exploration and production demands. The material includes carbon steel (for the most common use), alloy, chrome and high alloy steels. API 5CT grades cover J55 / K55, N80 type 1 and N80Q, L80, C90, T95, P110, Q125, and with additional requirements of 13 Cr.
Item Name: Oil Casing Pipe.
Brand: HOLIC®.
Casing Pipe Sizes:
- Out Diameter: 1.315″- 20″
- Wall Thickness: 0.133″-0.500″
- Length: R1(group1), R2(group2), R3(group3)
Materials & Grades: API 5CT J55 / K55, N80-1, N80Q, C90, T95, P110, Q125 and 13Cr.
Application: oil well extracting, oil well extracting, borehole.
Types: seamless casing, ERW casing.
Connections:
- P (Plain end)
- STC (short threads)
- LTC (long threads)
- BTC (buttress threads)
- Premium gas-tight connectors
- Non-upset ends (NUE)
- External upset ends (EUE)
- Premium gas-tight connectors
- Others special connectors
Product Description
OCTG Pipe/Oil Casing Pipe Factory:
Holic Oil Pipeline Co., LTD.
Oil Casing Basics:
Oil casing is a steel pipe used to support the walls of oil and gas wells to ensure the normal operation of the entire oil well after drilling and completion. Each well uses several layers of casing according to different drilling depths and geological conditions. Cement is used to cement the well after the casing is run down. Unlike tubing and drill pipe, it cannot be reused and is a disposable material. Therefore, casing consumption accounts for more than 70% of all oil well pipes.
Oil casing is the lifeline to maintain the operation of oil wells. Due to different geological conditions, the downhole stress state is complex, and the combined action of tensile, compressive, bending and torsion stresses on the pipe body, which puts forward higher requirements on the quality of the casing itself. Once the casing itself is damaged for some reason, the entire well may be reduced or even scrapped.
Casing can be divided into different steel grades according to the strength of the steel itself, namely J55, K55, N80, L80, C90, T95, P110, Q125, V150, etc. Different well conditions and depths have different steel grades. In a corrosive environment, the casing itself is also required to have corrosion resistance. In places with complex geological conditions, the casing is also required to have collapse resistance.
Weight calculation:
[(Outer diameter-wall thickness)*wall thickness]*0.02466=kg/m (weight per meter)

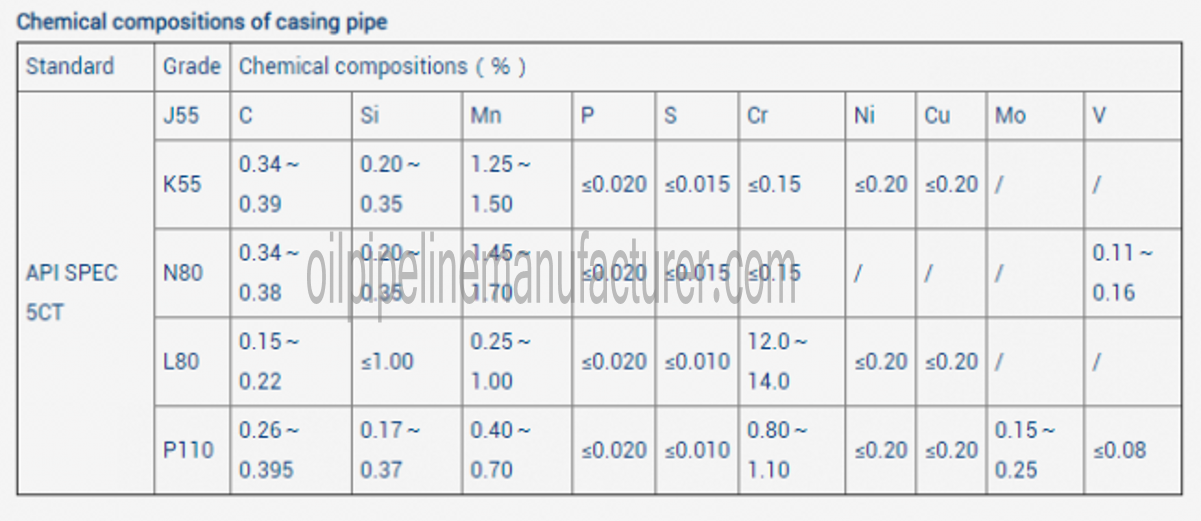

Chemical compositions:

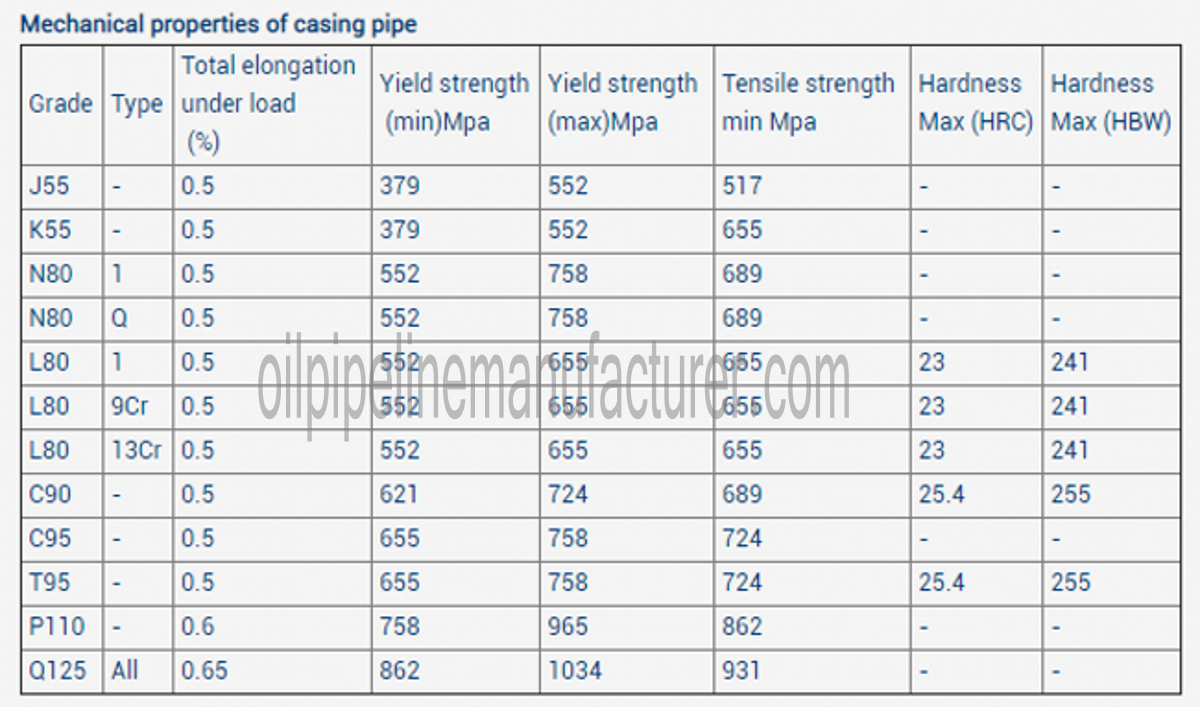

Mechanical Properties:

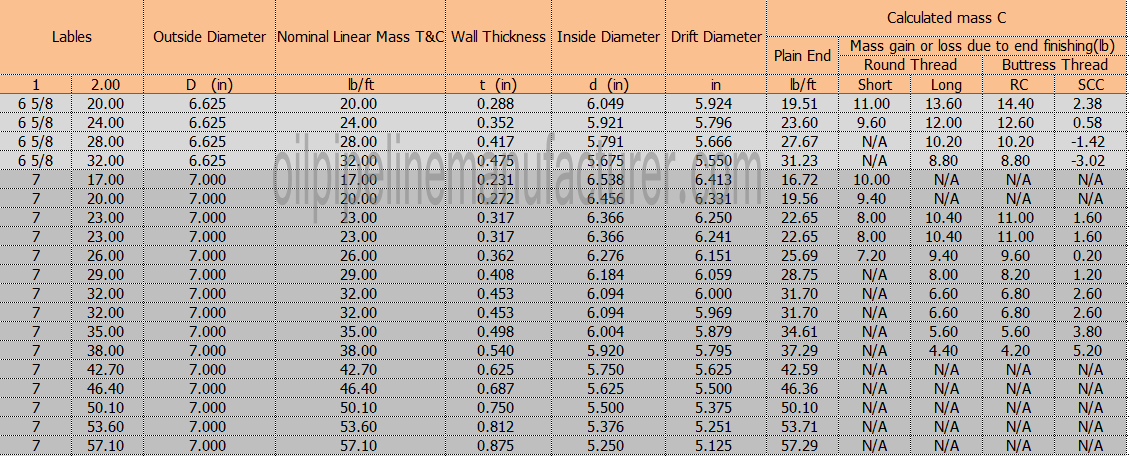

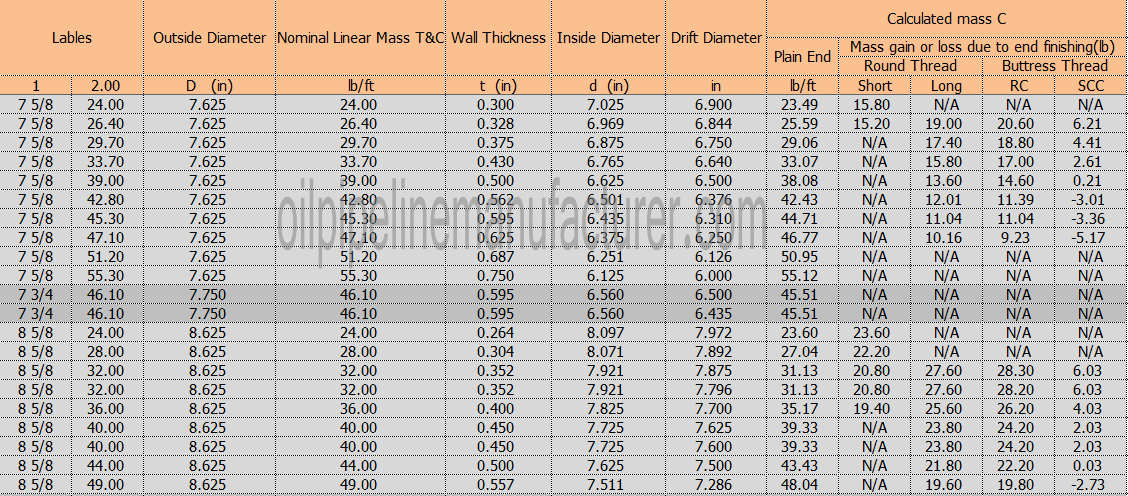

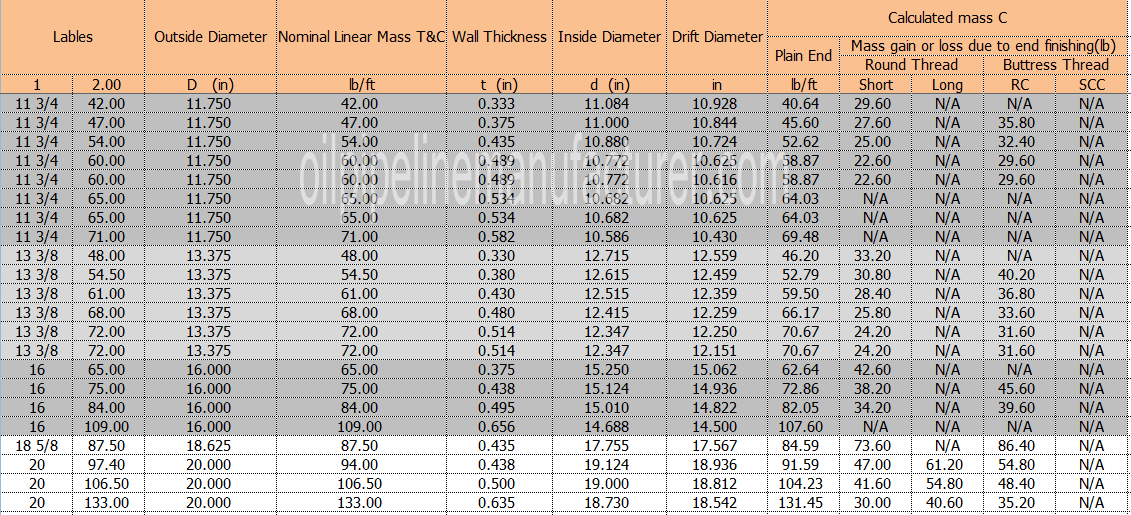

Oil Casing Dimensions and Weight Chart:
Note: other premium connection shall be provided as per customer requirements.
Our advantages:
As a leading brand of OCTG products in China, Holic® is working on providing high quality casing pipe with most competitive price. Especially for the grades J55/K55, N80-1 and N80Q casing. Moreover, Holic® is engaged in providing various premium connection casing pipe, for the server working conditions.
