Product Description

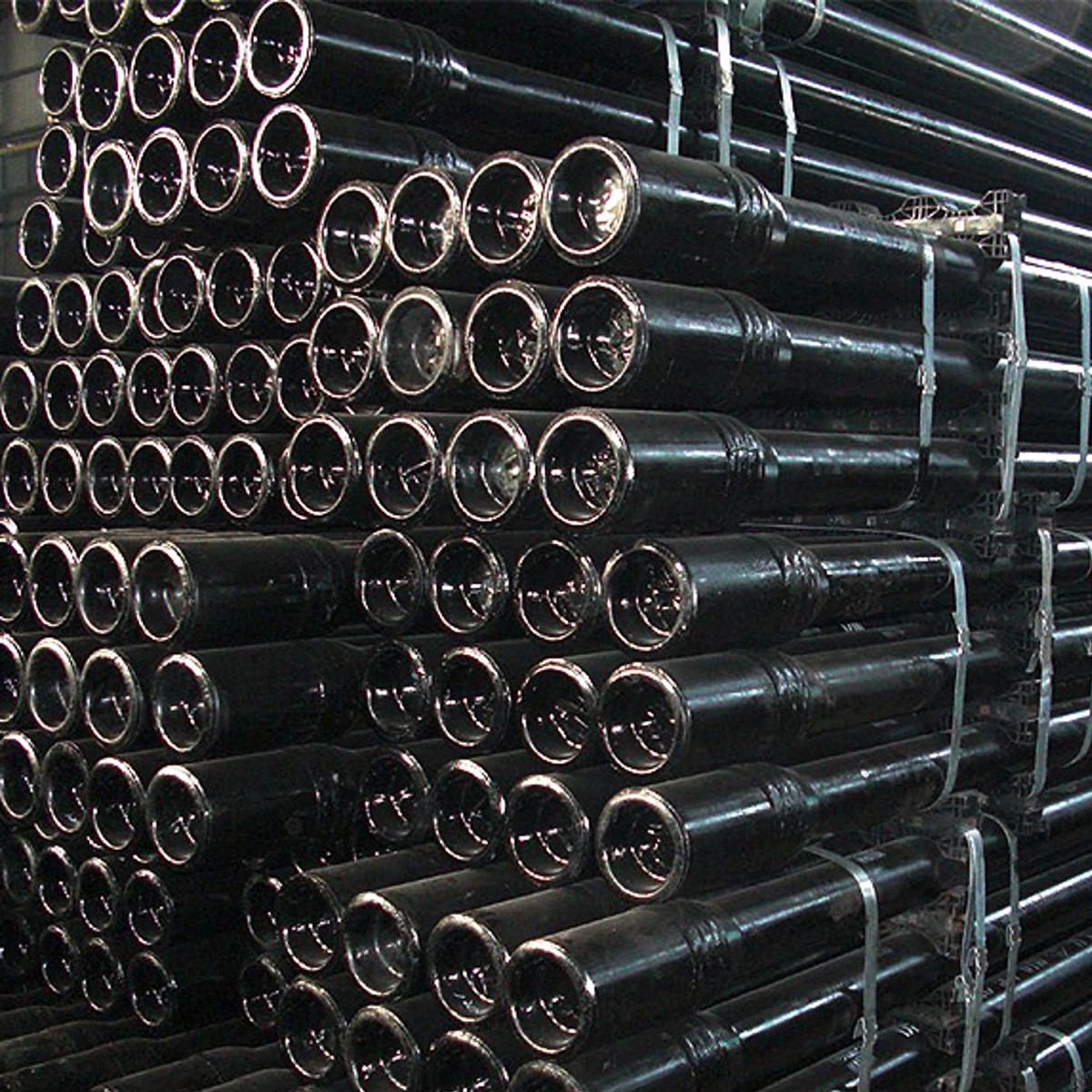

Oil Drill Pipe

Holic^® offers Oil Drill Pipe. Advanced drill pipe production lines can transfer the welding parameters to the best position to ensure the quality of welding zone; the heat treatment process with the feature of internal and external cooling at the same time can make a more reliable and stable mechanical character. Application of automatic weight, length measurement and automatic spray records can ensure products’ traceability. Application of thickening and heating lines and 1250 tons of upsetting machine can ensure the thickening size meet the standard of API SPEC 5DR Using of CN furnace for whole pipe body heating and quenching, tempering machine’s advanced heat treatment process can ensure the pipe’s mechanical character. Tube hydraulic straightening machine ensures the straightness and coaxiality of pipe body.

Item Name: Oil Drill Pipe.

Brand: HOLIC^®.

General Information About Drill Pipe

Drill pipe is one of the necessary components to any drilling rig designed to extract oil or other liquid materials from the ground. The drill pipe is not used for extraction. Instead, the hollow tubes pump drilling fluids downward to the bit and back out again as needed to reduce friction and heat buildup. Drill pipe transferred drilling torque to drill bit for drilling under the oil well. It bears complicated strength subject to pulling, loading, pressing, torsion and bending.

Multiple drill stems are frequently attached together to reach the lowest point of the drilling project, which can measure several miles in depth. This practice makes various manufacturing details vital for the drill pipes to be useful and long-lasting. First, the metal must be strong enough to withstand both internal and external pressure differences, transfer the drill’s torque without affecting the pipe’s structure, and suspend the necessary components attached to its end. Ideally, the drill pipes are reused, especially the more expensive types. For exceptionally deep wells, tempered steel is the material of choice.

After use at one drilling job, the pipe drill is transported to another site and given a full inspection. The main goal is to determine if the apparatus is still strong enough to use at future jobs before it is offered as a drill pipe for sale. Experts use various tools such as modified spherometers and ultrasonic metal testing gear to check for any weaknesses in the metal. The results of these tests give the drilling pipe its classification. New, unused ones get the N designation, P is used for premium grade, and C1, C2, and C3 based on various stages of wear. After a pipe gets lower than a C3 score, a red band signifies it as scrap metal.

As the drill pipe is only part of the complete apparatus needed for these types of drilling jobs, the bottom hole assembly also needs to be inspected. This BHA is a tube-shaped piece near the drill bit that is crafted of heavier and stronger metal.

How Drill Pipe Was Made

Pipe drills for sale do not start out as solid metal sheets rolled into tubes. Instead, three pieces are welded together to form the entire apparatus. These include the tube itself, the box tool joint, and the pin tool joint. The manufacturing company starts with base tubes of steel or aluminum. The tube ends undergo processes to rough up the metal in order to make tighter bonds. This process is called upsetting and can be done internally, externally, or at cross sections. Different manufacturers use different types and sizes of steel pipe upset. Finally, the pipes are heat treated to achieve proper strength.

All necessary pipe drill connectors and joint pieces undergo similar treatments at the manufacturing plant. Connectors are transformed into female or male box or pin threaded ends. In the finished pipe assembly, the connectors at joints represent the most likely point of damage or failure. This is due to the lower temperature tempering, and the additional stiffness or brittleness of the metal. The stronger the steel, the more brittle it is, so manufacturing plants use precise measurements to avoid failure during the drilling process.

When you need drill pipe for your company’s drilling needs, understanding the different steps of the manufacturing process can bring you the best possible outcome on site. A trusted source follows the best practices for choosing and tempering metals, upsetting connective ends, and building joints and connectors that stand strong under pressure.

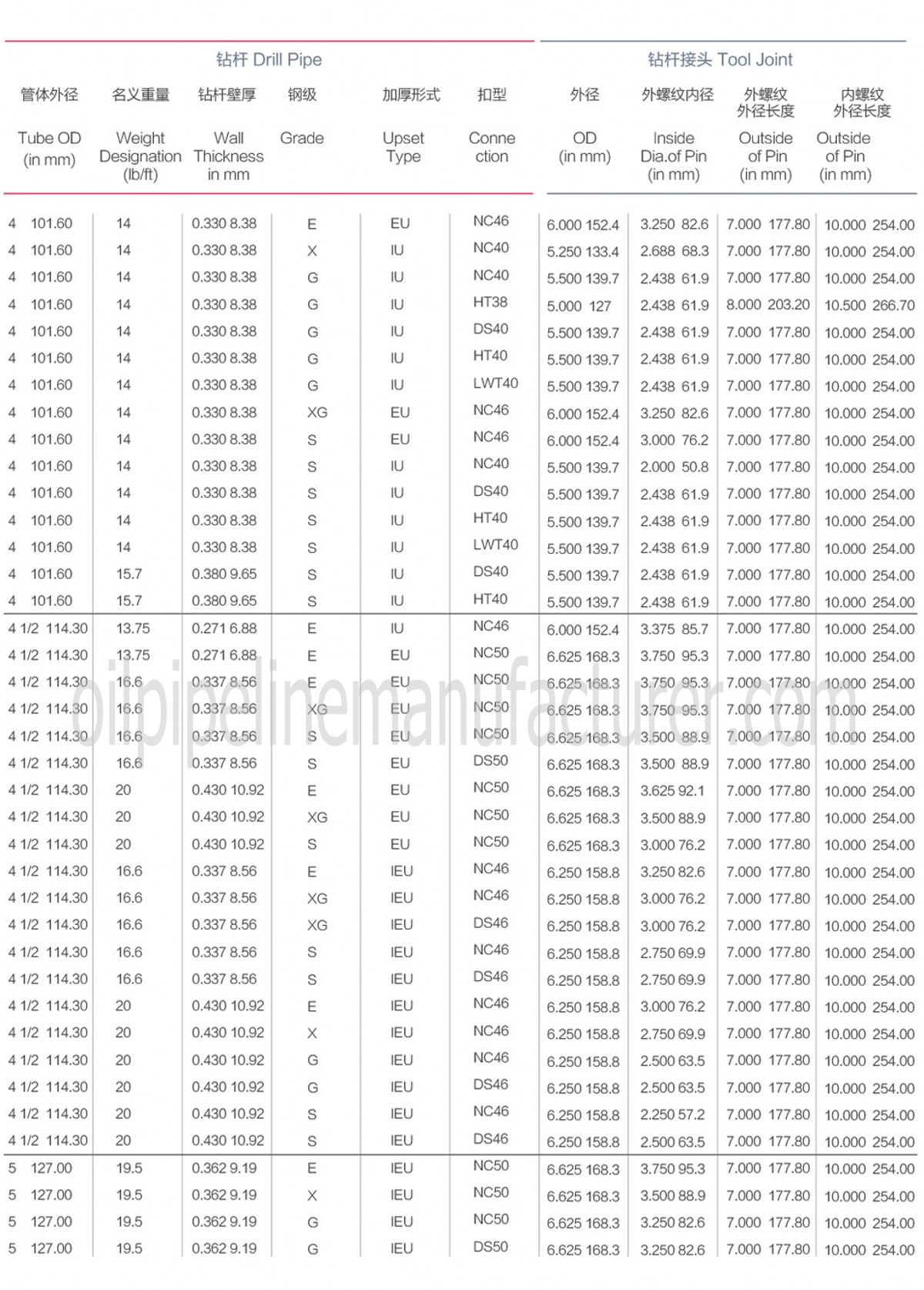

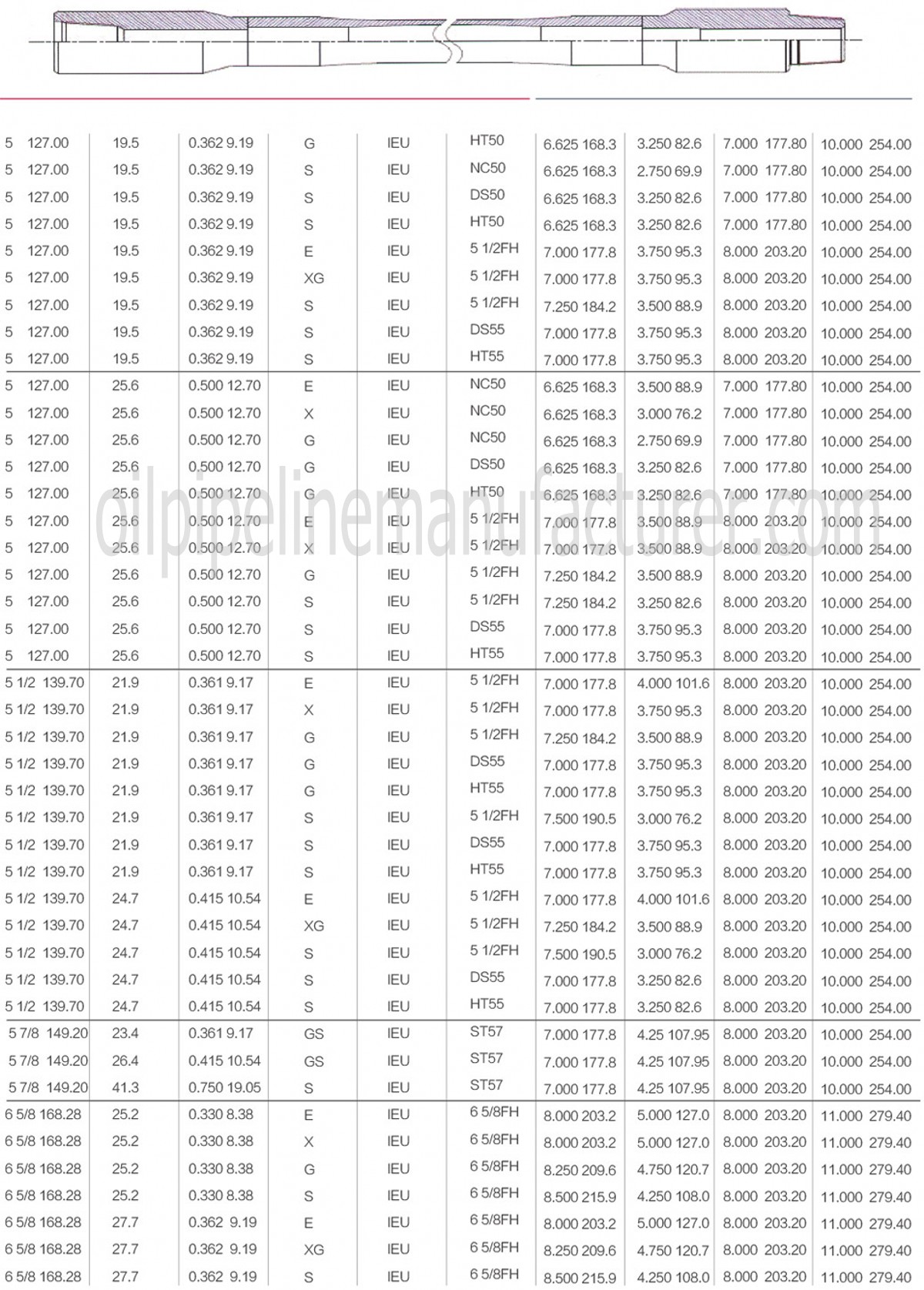

Holic^® Supply Range of Oil Drill Pipe:
